Semi-auto Type

제품이미지

PS3

Product Feature

Tray sealing machine is convenient tool that seals with film over the vessel included various kinds of foods. Mainly, the material of vessel and film are configurated PET / PE / PP / PS. Foods sealed with using these materials in this machine will be easy delivered, maintain freshness and kept clean than other packaging tools. It can also be used in microwave ovens.

PS Series suitable for shop & restaurant by simple designAlso con be used by~230 x 190mm tray, Semi-Auto Sealing Machine is classified by size of tray and intended use.(300,000 cycle sealign test without a break)

Usage : Shop, Restaurant, Take-out shop ,Factory

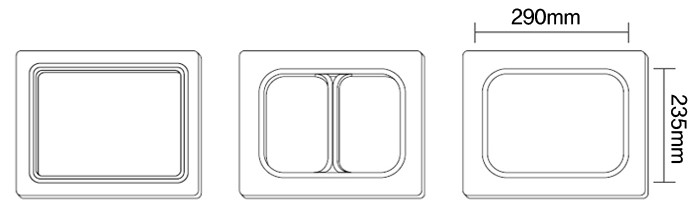

Vessel >>
~230 x 190 mm


Graph

제품이미지

Used Sample

제품이미지

Specification

Length 490mm
Width 430mm
Height 450mm
Weight 36kg
Work Cycle 6~7ea/min(Daily average 2,880 production and packaging available, 8hours)
Max Mold(Vessel) Size ~300 x 230mm
Power 220V, 60Hz,700W
Motor Gear head used,60Hz,1500r/m /Triac-semi-permanent life
Sealing Type Com compression-->Auto type
Vessel Insertion Sliding type-->Vessel IN/OUT(Manual)
Temp control Contactless(SSR, electronic type),-Semi-permanent life(Static Switch)
제품이미지
