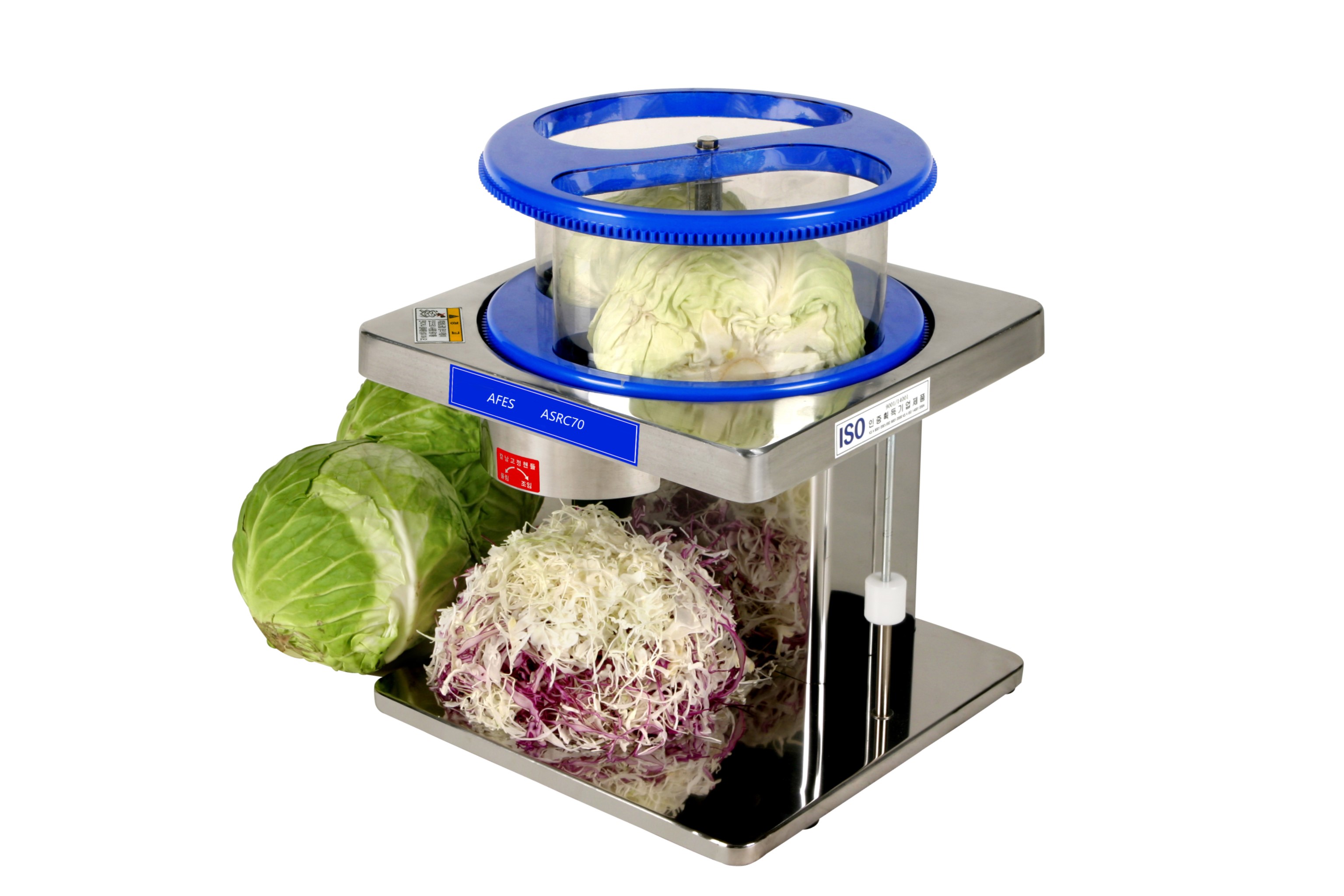

ASRC - 70

Product Feature

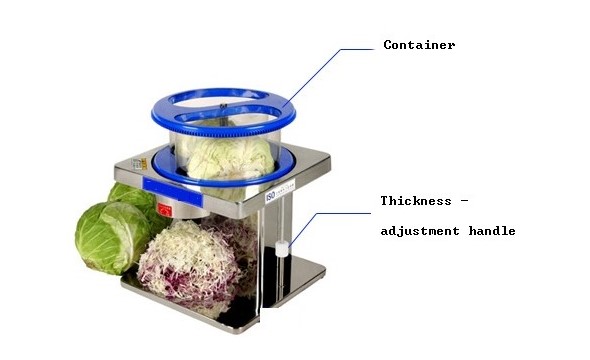

* This product enables users to cut a great deal of cabbages in short
time and to adjust the thickness of cabbages.
* Never touch the product or add some cabbages while it is working.
* Never turn the power on when the container is disassembled because
knives are exposed.

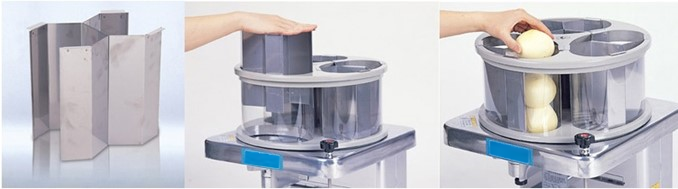

<< How to use partitions for cutting onions >>

* The maximum diameter of onions to be used is 110 mm for the ASRC 80 model.
* The diameter of onions to be used is 100mm and 90mm for ASRC70 model.
* In ASRC 70 case, it has a different diameter partitions in the container.
* Onions can be cut after completely peeled.
* Before operation, install all partitions in the container. If a partition is installed
only on one side, it can cause vibration due to imbalance.

Graph

Specification

Dimension (L×W× H)	362 × 362 × 432H(mm)
Power Consumption	110W
Machine weight	16kg
Power	Single phase	220V/60Hz
Capability	About 17cabbages/h
Container Hole	230 * 120 * 150H 2EA
Thickness control	0.5~5mm
