AUTO SEALING MACHINE

Product Feature

SMART AFES Tray Sealing Series is developed by applying digital 3D technology,
and it is a product with invention and practical patents.

Powerful sealing Pressurized Driving & Anti Heat shrink & Wrinkle Free
Sealing and cutting in one shot with easy and simple function.

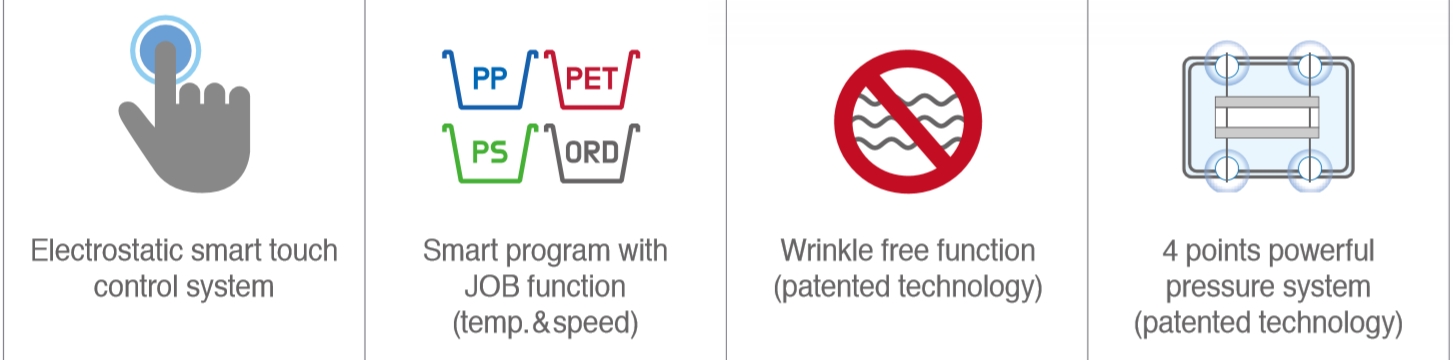

<< Features >>
- Fully automatic operation
- LCD display
- Multiple safety system
- Wrinkle free function (patented)
- 4 points powerful pressure system
(patented)
- Digital temperature & speed indication
- Daily pack counter
- Smart program with JOB function
- 2-step (double) sealing for hot food
- Cuts the film to the contour of trays
- Clean and hygienic die-cut system

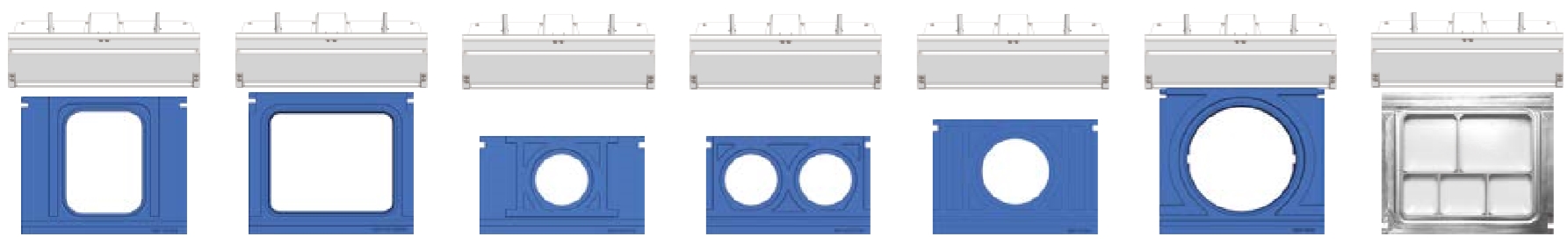

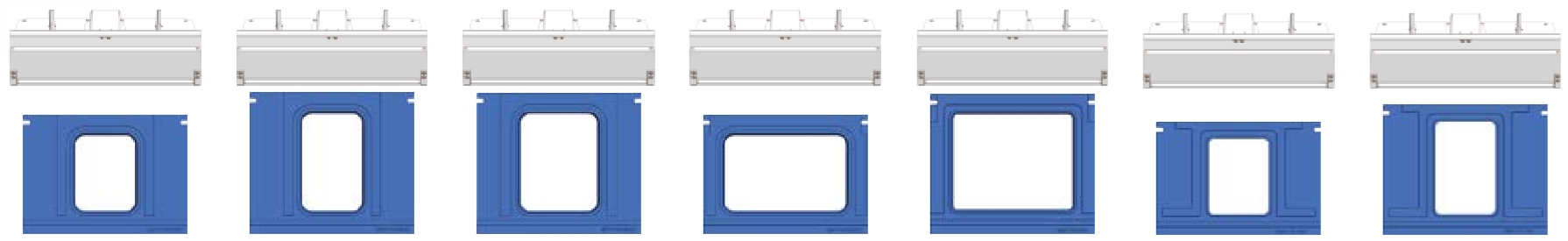

<< Optional devices >>
Every heater set is compatible with each other, giving AFES Tray Sealing series a wide versatility
to seal all shape and sizes of container.

Graph

Used Sample

•
•
•
•

Specification

Speed	Max. 9 packages per minute
Container	90X90 ~ 240X240 mm
Film Spec	120mmX300M ~ 270mmX300M
Voltage	220V 60Hz ± 10%
Power consumption	Quiescent Current-8mA	Peak Current-800W
Overall size	41 (W)x45 (D)x57 (H) Cm
Weight	27Kg
