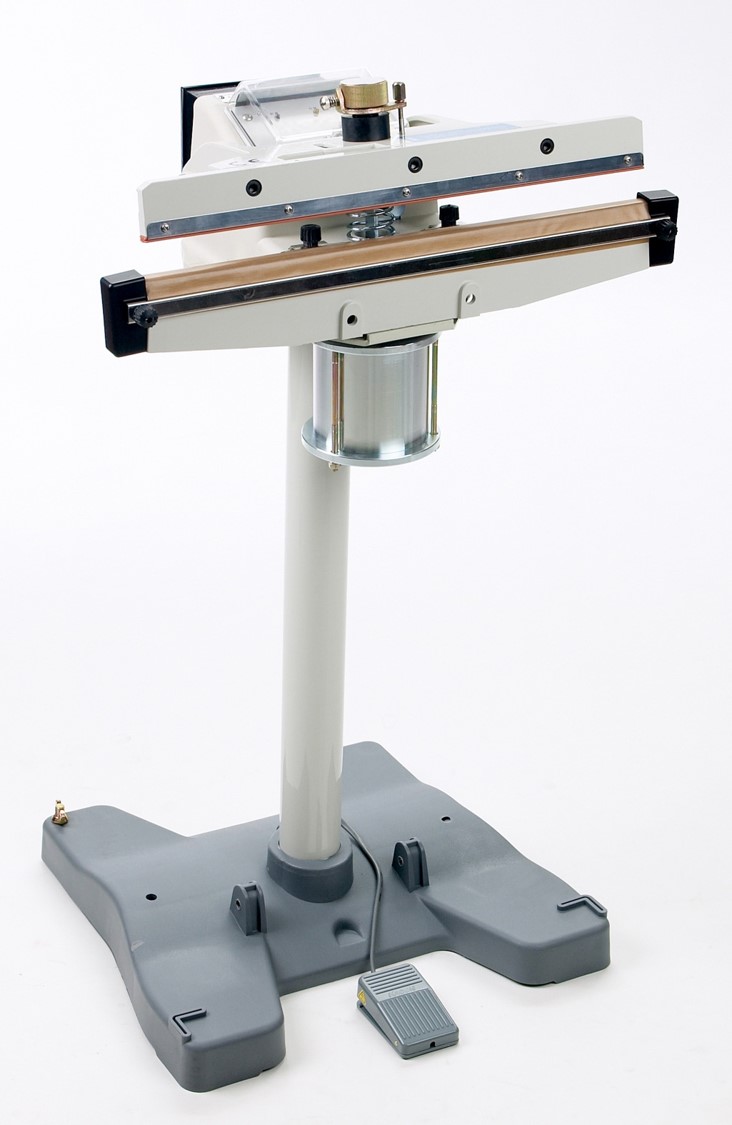

NS - Semi Auto Sealer

Product Feature

NS has an impulse electric circuitry, powerful solenoid, temperature senor, automatically sealed by pressurization power operation when step on foot switch.
"W" type - double element on the up and down bar.

Option : Printer
W-model : Two heating elements (up and down)

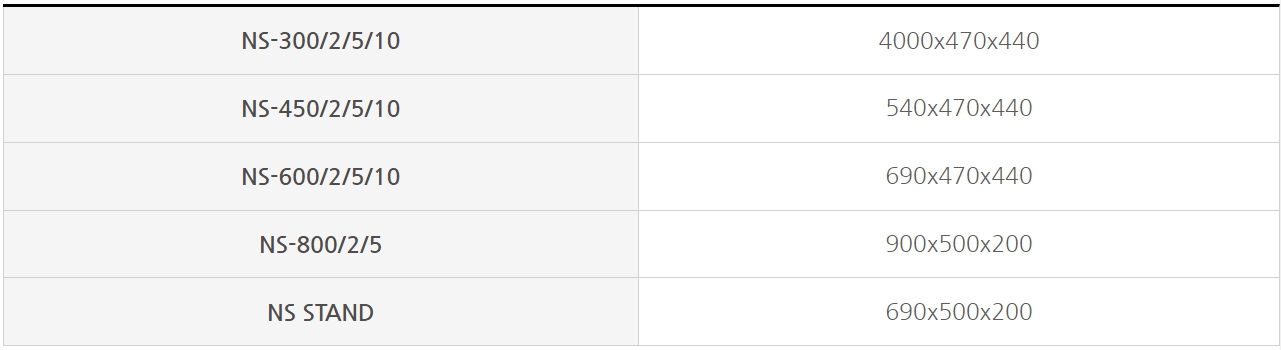

Carton box dimension : In case of NS-450/5 470(L) * 540 (W) * 440mm(H)
Stander box dimension : 690(L) * 500(W) * 200mm(H)
2 cartons for one goods with head and stander.

Graph

Specification

DESCRIPTION	NS Semi Auto Sealer
DIMENSION	540(W)470(L)440(H) IN CASE OF NS-450
TEMPERATURE OF SEALING	150 MAX
SEALING TIME	MIN 0.5 Sec-MAX 2.5 Sec
REGULAR SEALING TIME	IT'S DIFFERENT ACCORDING TO THE KINDNESS OF FILM
LENGTH OF SEALING	From 2mm to 10mm(W) * 2mm to 800mm(L)
POWER CONSUMPTION	950W
SEALING THICKNESS	0.5mm Below
WEIGHT	28kg
