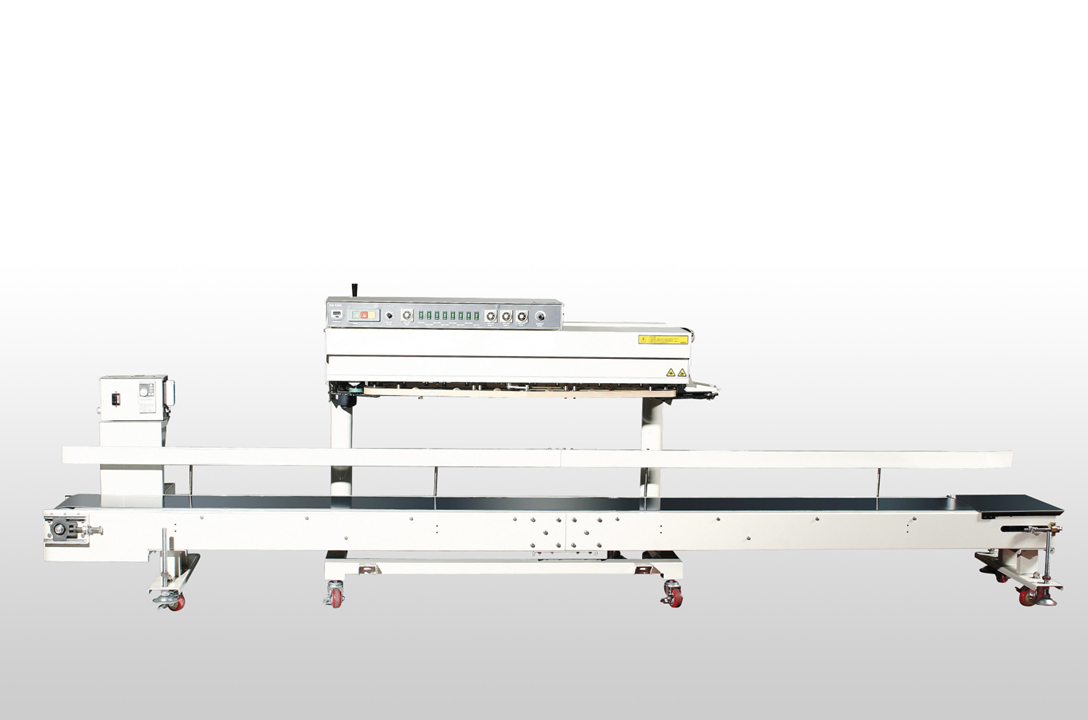

EX-1000HD

Product Feature

(Vertical for heavy contents)

For a big or heavy contents at the high speed and the film coated with multiple layer, special laminated material. Optional item as user’s taste “V”(Vacuum) “P”(Printer)


Thick and solid body for semi permanent life.
Easy operating and replacing for parts.
- Emergency stop button against danger.
-Most stainless steel parts preventing a tarnished body.
- Being able to adjust the angle of the conveyer for working in most situations regardless of the contents in a bag.
-Air suction system being able to keeping the packed products fresh, displaying, storing for a long period of time by sucking out the inner air of the bags.
-Self-adjusting pressure system for suitable sealing types according to the thickness of the bags.

Used Sample

Specification

Sealing speed	20M/minute
Power Consumption	3180W
Sealing Width	5, 10, 15mm
Net weight	310
Heater	6"(1500mm)L / 230V / 500W (3sets/ 6EA)
Power supply	230V AC, 50Hz, 1Ph./110V (option)
Printer type	Standard (Ribbon), Option, Dry Ink
Feed Direction	Right to Left, Electric Height Adjusting Device (Standard)
Sealing Temperature	0 ~ 390
Conveyor Belt	15.7" (400mm) * 0.2" (5mm)T
Cooling Type	Forced air cooling (3 bars)
Dimension	(inch) 137.8" (3500mm)L * 32", (810mm)W * 43.7" (1110mm) ~ 63.4" (1610mm)H
